AWS Private Deployment Guide (EC2 and EKS)

Introduction

This guide walks you through the process of setting up a production-ready environment for deploying Cohere models in AWS.

Private deployment in AWS offers enhanced security, compliance, and control over your infrastructure and applications while leveraging AWS’s reliable and scalable cloud services.

What this guide will cover

This guide provides comprehensive instructions for deploying applications in a private AWS environment using EC2 instances and Amazon EKS (Elastic Kubernetes Service).

Note: This guide uses an example of deploying the Embed Multilingual 3 model. If you are deploying a different model, the instance sizing will differ – please contact sales for further information.

Prerequisites

Before beginning this deployment, you should have:

  • An AWS account with appropriate permissions
  • Basic familiarity with AWS services and the AWS console
  • Understanding of Linux command line operations
  • Knowledge of containerization concepts if deploying containerized applications
  • The licence ID and model tag for the model you want to deploy. Please reach out to the Cohere team to get these.

Follow this guide sequentially to ensure all components are properly configured for a secure and efficient private deployment in AWS.

Deploying via EC2 instances

Amazon Elastic Compute Cloud (EC2) provides scalable computing capacity in the AWS cloud and forms the foundation of your private deployment.

In this section, we’ll walk through launching an appropriate GPU-enabled EC2 instance, connecting to it securely, and installing the necessary NVIDIA drivers to utilize the GPU hardware.

The following sections provide a step by step guide to deploy the Embed Multilingual 3 model on EC2.

Launch EC2 instance

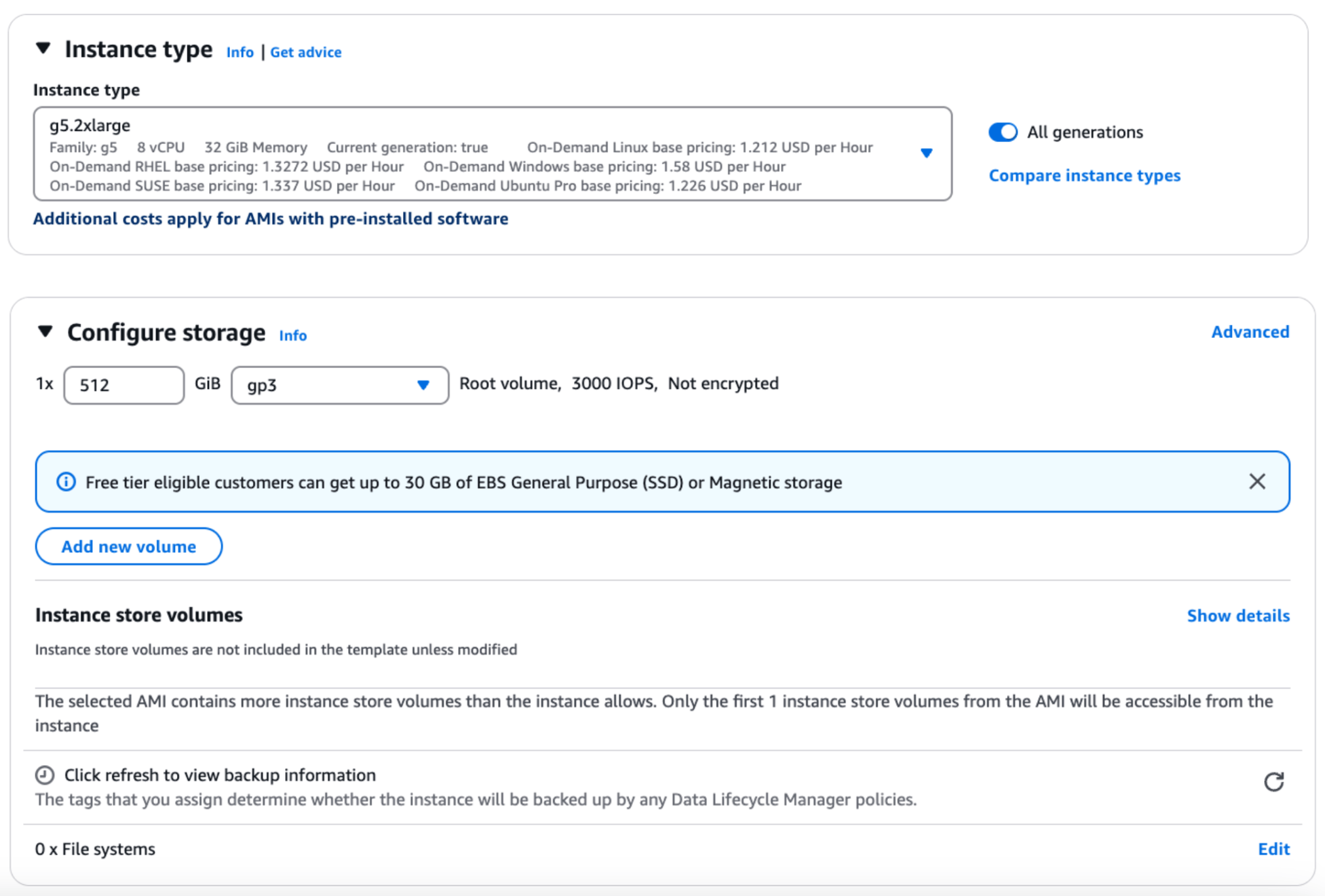

First, launch an EC2 instance with the following specifications:

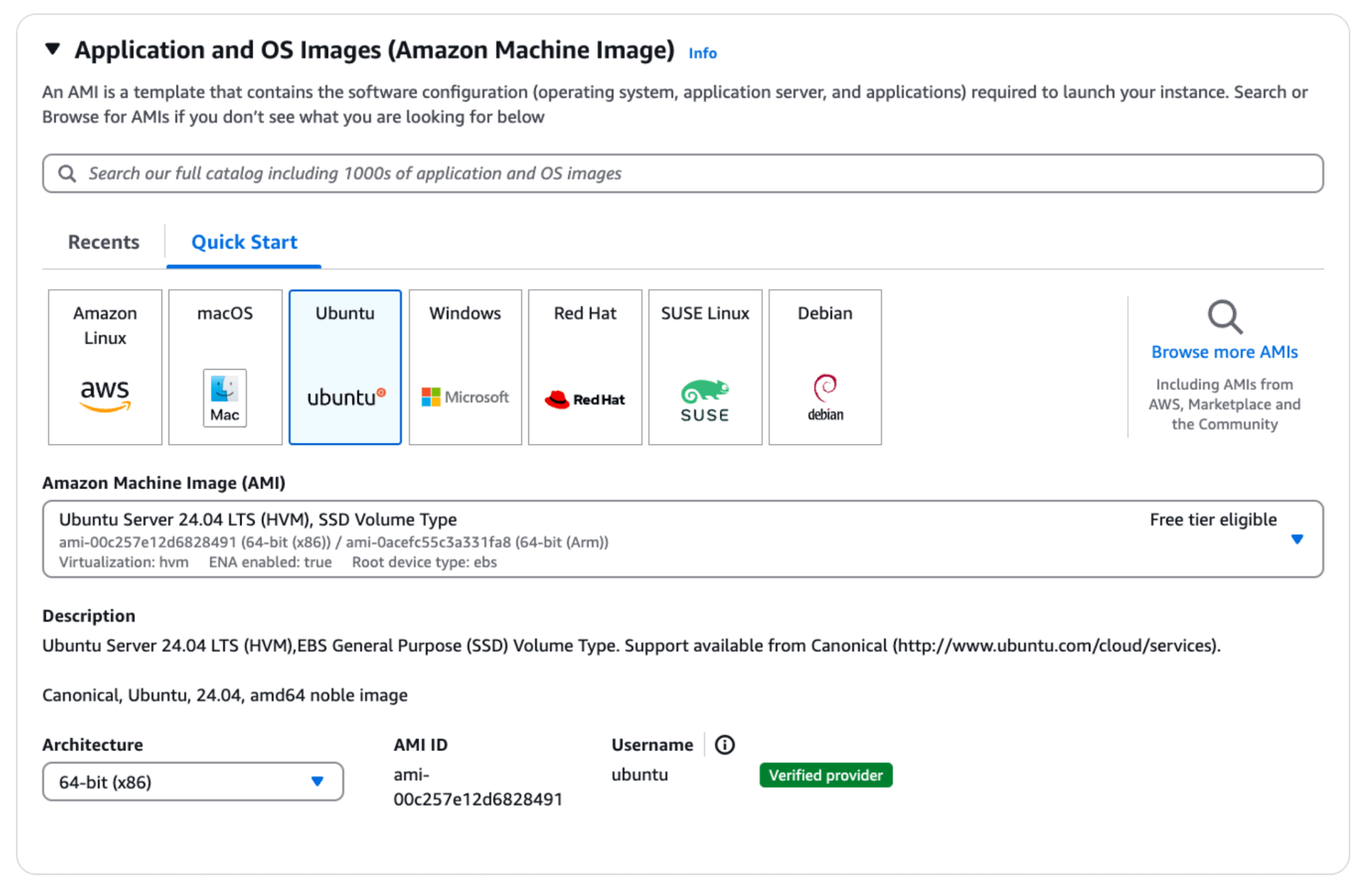

  • Application and OS images - Ubuntu
  • Instance Type - g5.2xlarge - 8vCPU
  • Storage - 512 GB - root volume

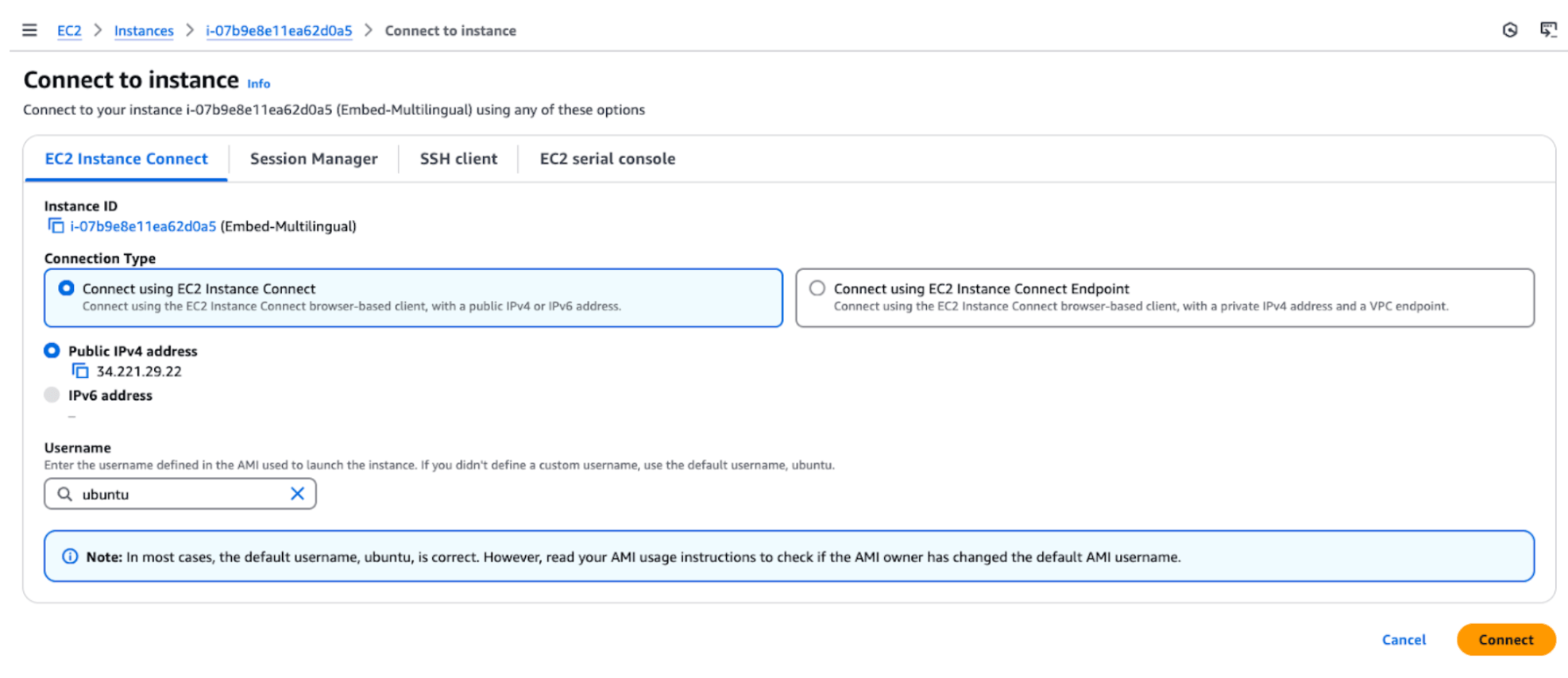

SSH to the EC2 instance using AWS console - ‘EC2 Instance Connect’ option.

Next, connect to your EC2 instance using the “EC2 Instance Connect” option. This allows you to access the instance through a browser-based client using the default username “ubuntu.” Ensure your instance has a public IPv4 address for successful connection.

Install Nvidia drivers

Next, install the NVIDIA drivers on your EC2 instance to enable GPU support. Use the following commands to install the necessary drivers and the NVIDIA CUDA toolkit.

  • Nvidia drivers

    $sudo apt install -y ubuntu-drivers-common
    >sudo ubuntu-drivers install
    >sudo apt install nvidia-cuda-toolkit

    Further reference

  • Nvidia container toolkit

    $curl -fsSL https://nvidia.github.io/libnvidia-container/gpgkey | sudo gpg --dearmor -o /usr/share/keyrings/nvidia-container-toolkit-keyring.gpg && curl -s -L https://nvidia.github.io/libnvidia-container/stable/deb/nvidia-container-toolkit.list | sed 's#deb https://#deb [signed-by=/usr/share/keyrings/nvidia-container-toolkit-keyring.gpg] https://#g' | sudo tee /etc/apt/sources.list.d/nvidia-container-toolkit.list
    >sed -i -e '/experimental/ s/^#//g' /etc/apt/sources.list.d/nvidia-container-toolkit.list
    >sudo apt-get update
    >sudo apt-get install -y nvidia-container-toolkit

    Further reference

  • Reboot the system This is often necessary after installing drivers or making significant system changes to ensure all components are properly initialized and running with the latest configurations.

    Before rebooting, restart any mentioned services after running the above commands.

    $sudo reboot

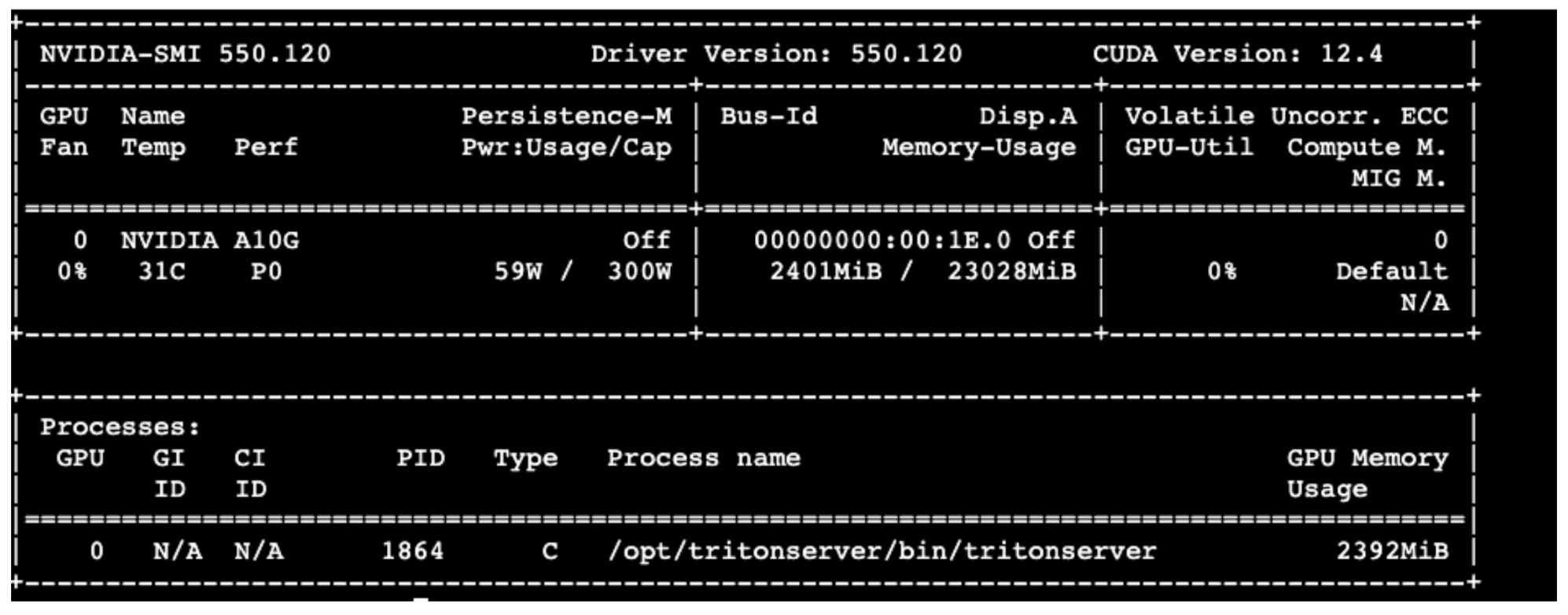

  • Verify that the GPU is correctly installed

    $nvidia-smi

Install docker on the instance

Next, install Docker on your instance. This involves updating the package list, installing Docker, starting the Docker service, and verifying the installation by running a test container.

$sudo apt-get update
>sudo apt-get install docker.io -ysudo systemctl start docker
>sudo docker run hello-world
>sudo systemctl enable docker
>docker --version

Further reference

Define environment variables

$export CUSTOMER_TAG=proxy.replicated.com/proxy/cohere/us-docker.pkg.dev/cohere-artifacts/replicated/single-serving-embed-multilingual-03:<YOUR_MODEL_TAG>
>export LICENSE_ID="<YOUR_LICENSE_ID>"
>export DOCKER_CONFIG=$(mktemp -d)
>cat <<EOF > "${DOCKER_CONFIG}/config.json" { "auths": { "proxy.replicated.com": {"auth": "$(echo -n "${LICENSE_ID}:${LICENSE_ID}" | base64 | tr -d '\n')"}}EOF

Further reference

Pull container image

Next, prepare the environment by obtaining the required software components for deployment.

$sudo docker pull $CUSTOMER_TAG

If you encounter an error “permission denied while trying to connect to the Docker daemon socket at”, run the following command:

$sudo chmod 666 /var/run/docker.sock

Further reference

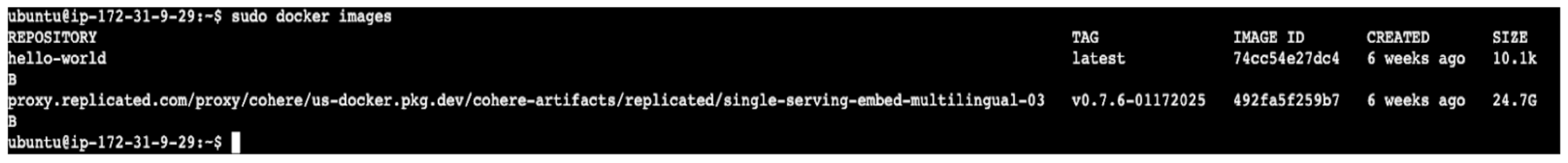

Then, verify that the image has been pulled successfully:

$sudo docker images

Start container

Next, run the Docker container. This starts the container in detached mode with GPU support.

$sudo docker run -d --rm --name embed-english --gpus=1 --net=host proxy.replicated.com/proxy/cohere/us-docker.pkg.dev/cohere-artifacts/replicated/single-serving-embed-multilingual-03:<YOUR_MODEL_TAG>
>

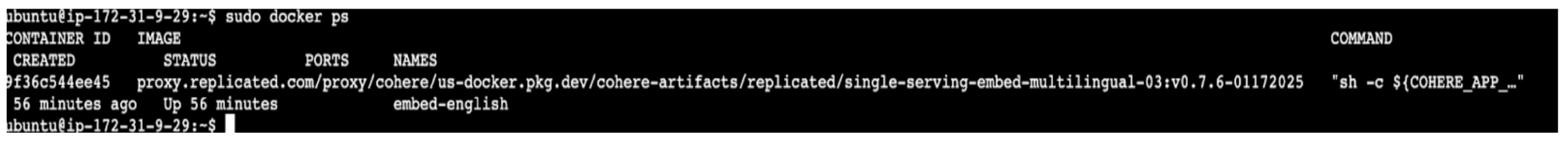

>sudo docker ps

Call the model

Next, test calling the model by executing the curl command to send a POST request to the local server. This tests the model’s functionality by providing input data for processing.

$curl --header "Content-Type: application/json" --request POST http://localhost:8080/embed --data-raw '{"texts": ["testing multilingual embeddings"], "input_type": "classification"}'

Deploying via EKS (Elastic Kubernetes Service)

Amazon Elastic Kubernetes Service (EKS) provides a managed Kubernetes environment, allowing you to run containerized applications at scale. It leverages Kubernetes’ orchestration capabilities for efficient resource management and scalability.

In this section, we’ll walk through setting up an EKS cluster, configuring it for GPU support, and deploying your application.

Launch EKS cluster

First, launch an EKS cluster by following the steps in the AWS documentation, and in particular, the steps in Prerequisites and Step 1-4.

The steps in summary:

  • Install AWS CLI and Kubectl
  • Create the Amazon EKS cluster

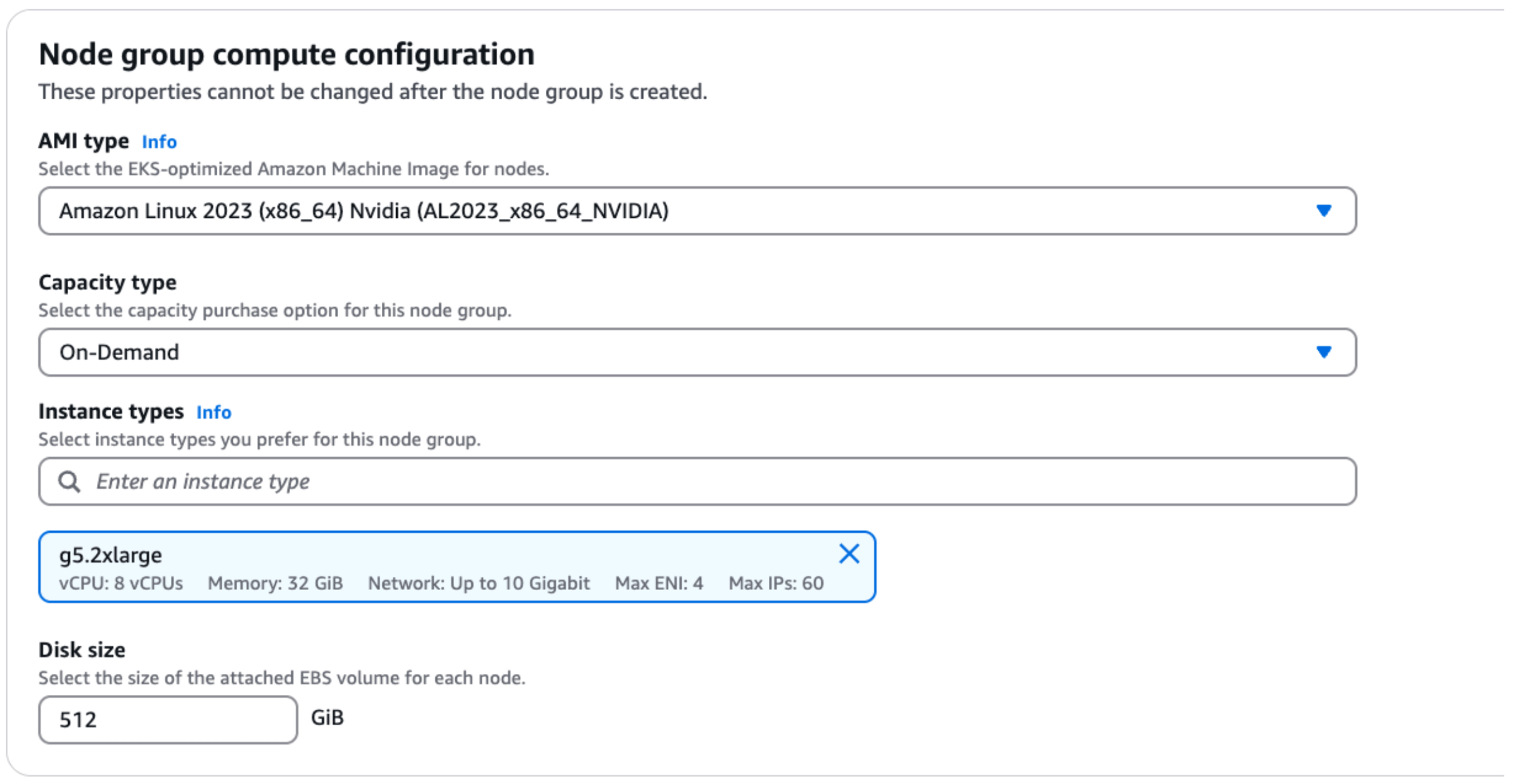

  • As part of adding nodes to the cluster in step3, use the following
    • AMI type - Amazon Linux 2023 - Nvidia (nvidia drivers pre-installed)
    • Instance Type - g5.2xlarge - 8vCPU
    • Storage - 512 GB

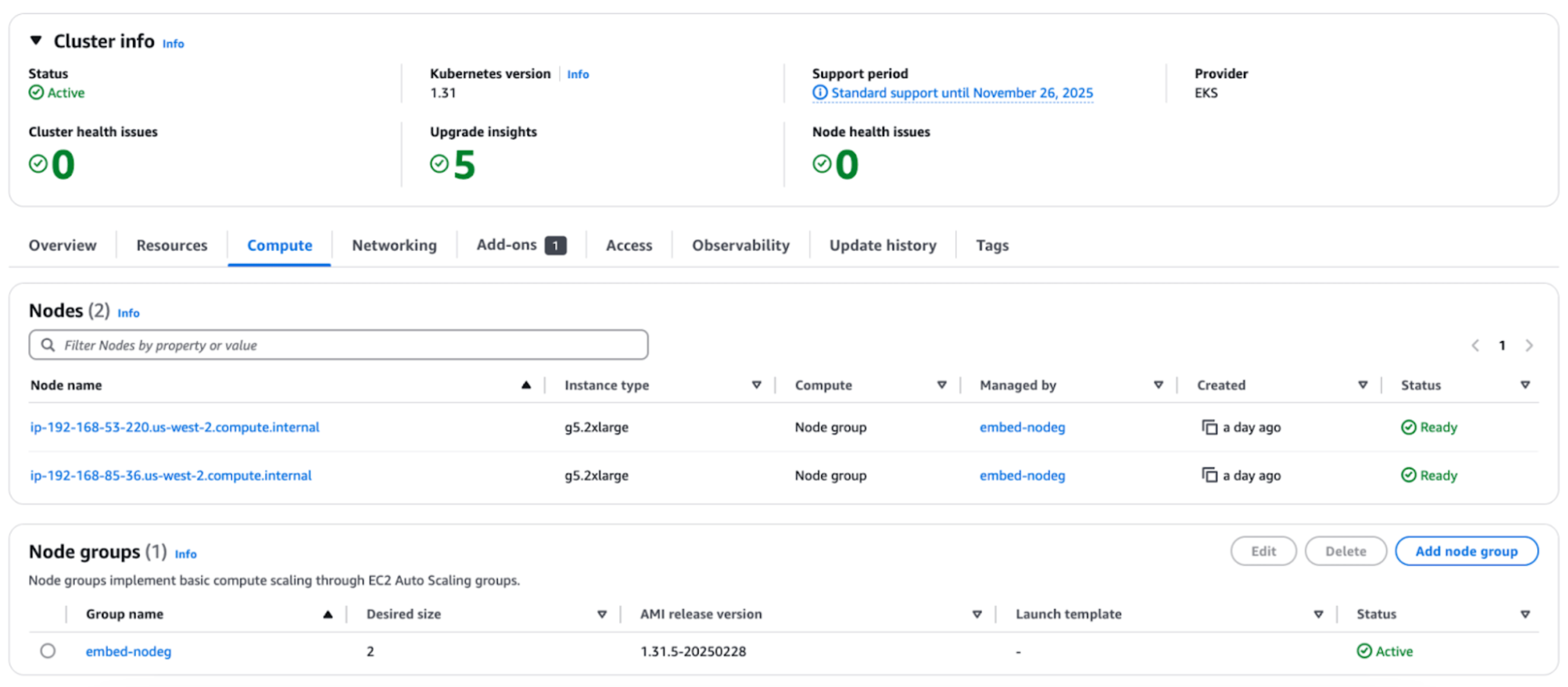

You can then view the cluster information in the AWS console.

Define environment variables

Next, set environment variables from the machine where the AWS CLI and Kubectl are installed.

$export CUSTOMER_TAG=proxy.replicated.com/proxy/cohere/us-docker.pkg.dev/cohere-artifacts/replicated/single-serving-embed-multilingual-03:<YOUR_MODEL_TAG>
>export LICENSE_ID="<YOUR_LICENSE_ID>"
>export DOCKER_CONFIG=$(mktemp -d)
>cat <<EOF > "${DOCKER_CONFIG}/config.json" { "auths": { "proxy.replicated.com": {"auth": "$(echo -n "${LICENSE_ID}:${LICENSE_ID}" | base64 | tr -d '\n')"}}EOF
>kubectl create secret generic cohere-pull-secret --from-file=.dockerconfigjson="{$DOCKER_CONFIG}/config.json" --type=kubernetes.io/dockerconfigjson

Further reference

Generate application manifest

Next, generate an application manifest by creating a file named cohere.yaml. The file contents should be copied from this link.

Start deployment

Next, start the deployment by applying the configuration file. Then, check the status and monitor the logs of your pods.

$kubectl apply -f cohere.yaml
>kubectl get pods
>kubectl logs -f <pod-name-from-above-command>

Call the model

Next, run the model by first setting up port forwarding.

$kubectl port-forward svc/cohere 8080:8080

Then, open a second window and send a test request using the curl command.

$curl --header "Content-Type: application/json" --request POST http://localhost:8080/embed --data-raw '{"texts": ["testing embeddings in english"], "input_type": "classification"}'
